| BATTERY / 2000 TM |
ISO-9002/UL/CE/TUV certified |
|
|

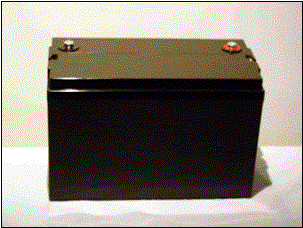

| 2M-1280HR |
HIGH RATE SERIES |
12V-80AH |
|
|
| |
|
| |
|
SPECIFICATIONS |
|
|
|
|
|
|
|
| |
|
|
Nominal Voltage |
12 |
|
|
| |
|
|
Terminal Type |
Inverted screw |
|
|
| |
|
|
Max. Discharge Current |
525 Amps |
|
|
| |
|
|
Internal Resistance |
4.5 Mili. Ohms |
|
|
| |
|
|
Short circuit current |
|
3369 Amps |
|
|
|
| |
|
|
Weight |
26 kg (57.3
lbs.) |
|
|
| |
|
|
Dimensions |
Length |
256 mm (10.1") |
|
|
|
| |
|
|
Width |
168 mm (6.62") |
|
|
|
| |
|
|
Height |
208 mm (8.20") |
|
|
|
| |
|
|
Total Height |
213 mm (8.39") |
|
|
|
| |
|
|
Plates |
Separator |
|
|
| |
|
|
Lead Calcium alloy |
Micro porus |
|
|
| |
|
|
Self Discharge @ 77*F (25*C) |
|
|
| |
|
|
Capacity after 3 months
storage |
91% |
|
|
| |
|
|
Capacity after 6 months
storage |
82% |
|
|
| |
|
|
Capacity after 12 months
storage |
64% |
|
|
| |
|
|
Capacity affected by temperature (20 hr. rate) |
|
|
| Product Features |
|
|
|
104*F (40*C) |
|
102% |
|
|
| |
|
|
|
|
|
77*F (25*C) |
|
100% |
|
|
| Maintenance Free. |
|
|
|
32*F (0*C) |
|
85% |
|
|
| Sealed Construction makes it spill proof. |
|
|
|
58*F (15*C) |
|
65% |
|
|
| Vent system automatically opens and reseals. |
Capacity @ 77*F (25*C) |
|
|
| 10 year design life |
80.0Ah @ 20hour
rate |
|
|
| Operates at low internal pressure |
72.2Ah @ 8
hour rate |
|
|
| Rugged ABS housing for easy handling. |
Discharge |
(-40*F)
(-40*C) to (+140*F) (60*C) |
|
|
| Battery will operate in any position. |
Charge |
(-4*F) (-20*C) to (+122*F) (50*C) |
|
|
| Battery is 100%
memory free |
Recommended |
(68*F) (20*C)
to (77*F) (25*C) |
|
|
| |
|
|
Charging (constant voltage) |
|
|
| |
|
|
Cycle use |
14.1-
14.5 volts @ (77*F) (25*C) |
|
|
| |
|
|
Float use |
13.5
- 13.8 volts @ (77*F) (25*C) |
|
|
| |
|
|
Storage |
6 months @
68*F (20*C) |
|
|
| DISCHARGE SPECIFICATIONS |
|
|
|
Constant power rating in Watts per battery@77*F (25*C) in minutes |
|
|
|
| Final
VPC |
5 |
10 |
15 |
20 |
30 |
40 |
45 |
50 |
60 |
90 |
|
|
|
|
| |
1.60 |
3157 |
2342 |
1807 |
1478 |
1095 |
879 |
810 |
740 |
603 |
439 |
|
|
|
|
|
|
|
| |
1.67 |
3049 |
2297 |
1786 |
1465 |
1088 |
873 |
804 |
737 |
600 |
438 |
|
|
|
|
|
|
|
| |
1.70 |
3003 |
2281 |
1776 |
1456 |
1083 |
870 |
803 |
736 |
599 |
435 |
|
|
|
|
|
|
|
| |
1.75 |
2847 |
2147 |
1712 |
1428 |
1073 |
863 |
796 |
729 |
593 |
434 |
|
|
|
|
|
|
|
| Constant current rating, Amps @77*F (25*C) in hours |
|
|
| |
|
1 |
2 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
24 |
|
|
|
|
|
|
|
| |
1.75 |
50.00 |
29.10 |
21.10 |
16.60 |
13.70 |
11.70 |
9.01 |
7.35 |
6.28 |
3.38 |
|
|
|
|
|
|
|
| |
1.80 |
49.20 |
28.90 |
20.90 |
16.30 |
13.40 |
11.40 |
8.90 |
7.31 |
6.22 |
3.34 |
|
|
|
|
|
|
|
| |
1.85 |
47.40 |
27.90 |
20.20 |
15.80 |
13.00 |
11.10 |
8.61 |
7.07 |
6.01 |
3.22 |
|
|
|
|
|
|
|
| |
1.90 |
43.60 |
26.10 |
19.00 |
14.90 |
12.30 |
10.40 |
8.04 |
6.52 |
5.49 |
2.98 |
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
