| BATTERY / 2000 TM |
ISO-9002/UL/CE/TUV certified |
|

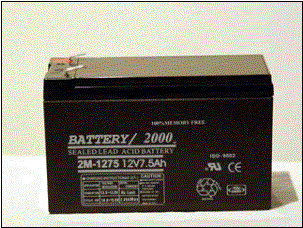

| 2M-1275 |
Standard Range |
12V-7.5AH |
|
| |
| |
|
SPECIFICATIONS |
|
|
|
|
|
| |
|
|
Nominal Voltage |
12 |
|
| |
|
|
Terminal Type |
187 faston |
|
| |
|
|
Max. Charging Current |
2.10 Amps |
|
| |
|
|
Internal Resistance |
25 Mili. Ohms |
|
| |
|
|
Weight |
2.66 kg (5.86
lbs.) |
|
| |
|
|
Dimensions |
Length |
151mm (5.95") |
|
|
| |
|
|
Width |
65 mm (2.56") |
|
|
| |
|
|
Height |
95 mm (3.74") |
|
|
| |
|
|
Total Height |
101mm (3.98") |
|
|
| |
|
|
Plates |
Separator |
|
| |
|
|
Lead Calcium alloy |
Glass Fiber |
|
| |
|
|
Self Discharge @ 77*F (25*C) |
|
| |
|
|
Capacity after 3 months
storage |
91% |
|
| |
|
|
Capacity after 6 months
storage |
82% |
|
| |
|
|
Capacity after 12 months
storage |
64% |
|
| |
|
|
Capacity affected by temperature (20 hr. rate) |
|
| |
|
|
|
|
104*F (40*C) |
|
102% |
|
| |
Product Features |
|
|
|
|
|
77*F (25*C) |
|
100% |
|
| |
|
|
|
|
32*F (0*C) |
|
85% |
|
| |
Maintenance
Free. |
|
|
|
58*F (15*C) |
|
65% |
|
| |
Sealed Construction makes
it spill proof. |
|
Capacity @ 77*F (25*C) |
|
| |
Vent
system automatically opens and reseals. |
7.60 Ah @ 20hour rate to 1.75V per cell |
|
| |
Excels at standby or
cycle application. |
|
7.13 Ah @ 10 hour rate to 1.75V per cell |
|
| |
Built with heavy duty
grids and virgin lead. |
|
6.38 Ah @
5 hour rate to 1.75V per cell |
|
| |
Rugged ABS housing for
easy handling. |
|
4.50 Ah @
1 hour rate to 1.75V per cell |
|
| |
Battery will operate in
any position. |
|
|
Operating Temperature Range |
|
| |
Battery is 100% memory free |
|
|
Discharge |
(-4*F) (-20*C)
to (+140*F) (60*C) |
|
| |
|
Charge |
(14*F) (-10*C)
to (+122*F) (50*C) |
|
| |
We recommend a constant voltage charge |
Recommended |
(65*F) (20*C)
to (77*F) (25*C) |
|
| |
Do not charge in upside down position. |
Charging (constant voltage) |
|
| |
|
|
Cycle use |
14.4
- 15.0 volts @ (77*F) (25*C) |
|
| |
|
|
Float use |
13.5
- 13.8 volts @ (77*F) (25*C) |
|
| |
|
|
Storage |
6 months @
68*F (20*C) |
|
| Discharge rate at 20* C in Amperes |
|
| |
TIME |
1 |
2 |
3 |
5 |
7 |
10 |
15 |
20 |
30 |
1 |
2 |
3 |
5 |
8 |
10 |
|
| |
|
Min. |
Min. |
Min. |
Min. |
Min. |
Min. |
Min. |
Min. |
Min. |
Hrs. |
Hrs. |
Hrs. |
Hrs. |
Hrs. |
Hrs. |
|
|
9.60V |
43.30 |
39.60 |
28.60 |
27.40 |
24.00 |
19.40 |
13.70 |
11.90 |
7.60 |
4.56 |
2.93 |
2.21 |
1.41 |
0.96 |
0.78 |
|
|
9.90V |
41.00 |
34.20 |
27.40 |
26.30 |
22.80 |
18.20 |
13.40 |
10.40 |
7.55 |
4.51 |
2.88 |
2.12 |
1.36 |
0.93 |
0.76 |
|
|
10.20V |
31.90 |
29.60 |
26.30 |
22.80 |
19.40 |
16.00 |
12.80 |
10.00 |
7.50 |
4.47 |
2.86 |
2.01 |
1.30 |
0.92 |
0.74 |
|
|
10.50V |
25.10 |
24.00 |
22.80 |
21.70 |
17.20 |
14.90 |
12.20 |
9.61 |
7.24 |
4.46 |
2.70 |
1.97 |
1.28 |
0.87 |
0.72 |
|
|
10.80V |
22.80 |
21.70 |
20.50 |
19.40 |
16.00 |
13.70 |
11.40 |
9.15 |
7.01 |
4.39 |
2.66 |
1.90 |
1.26 |
0.84 |
0.69 |
|
|
11.00V |
19.70 |
18.20 |
17.20 |
16.00 |
14.30 |
13.00 |
10.30 |
8.90 |
6.99 |
4.20 |
2.61 |
1.85 |
1.25 |
0.83 |
0.67 |
|
|
11.10V |
17.80 |
17.20 |
16.00 |
14.90 |
13.70 |
12.60 |
10.20 |
8.70 |
6.84 |
4.14 |
2.55 |
1.79 |
1.19 |
0.76 |
0.65 |
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
