| BATTERY / 2000 TM |
ISO-9002/UL/CE/TUV certified |
|
|

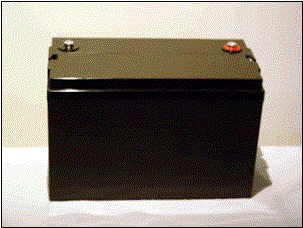

| 2M-1270HR |
HIGH RATE SERIES |
12V-70AH |
|
|
| |
|
| |
|
SPECIFICATIONS |
|
|
|
|
|
|
|
| |
|
|
Nominal Voltage |
12 |
|
|
| |
|
|
Terminal Type |
Inverted screw |
|
|
| |
|
|
Max. Discharge Current |
346 Amps |
|
|
| |
|
|
Internal Resistance |
5.8 Mili. Ohms |
|
|
| |
|
|
Short circuit current |
|
2617 Amps |
|
|
|
| |
|
|
Weight |
23.5kg (52
lbs.) |
|
|
| |
|
|
Dimensions |
Length |
256 mm (10.1") |
|
|
|
| |
|
|
Width |
168 mm (6.62") |
|
|
|
| |
|
|
Height |
208 mm (8.20") |
|
|
|
| |
|
|
Total Height |
213 mm (8.39") |
|
|
|
| |
|
|
Plates |
Separator |
|
|
| |
|
|
Lead Calcium alloy |
Micro porus |
|
|
| |
|
|
Self Discharge @ 77*F (25*C) |
|
|
| |
|
|
Capacity after 3 months
storage |
91% |
|
|
| |
|
|
Capacity after 6 months
storage |
82% |
|
|
| |
|
|
Capacity after 12 months
storage |
64% |
|
|
| |
|
|
Capacity affected by temperature (20 hr. rate) |
|
|
| Product Features |
|
|
104*F (40*C) |
|
102% |
|
|
| |
|
|
|
|
|
|
77*F (25*C) |
|
100% |
|
|
| Maintenance Free. |
|
|
|
32*F (0*C) |
|
85% |
|
|
| Sealed Construction makes it spill proof. |
|
|
|
58*F (15*C) |
|
65% |
|
|
| Vent system automatically opens and reseals. |
Capacity @ 77*F (25*C) |
|
|
| 10 year design life |
70.0Ah @ 20hour
rate |
|
|
| Operates at low internal pressure |
60.5Ah @ 8
hour rate |
|
|
| Rugged ABS housing for easy handling. |
Discharge |
(-40*F)
(-40*C) to (+140*F) (60*C) |
|
|
| Battery will operate in any position. |
Charge |
(-4*F) (-20*C) to (+122*F) (50*C) |
|
|
| Battery is 100%
memory free |
Recommended |
(68*F) (20*C)
to (77*F) (25*C) |
|
|
| |
|
|
Charging (constant voltage) |
|
|
| |
|
|
Cycle use |
14.1-
14.5 volts @ (77*F) (25*C) |
|
|
| |
|
|
Float use |
13.5
- 13.8 volts @ (77*F) (25*C) |
|
|
| |
|
|
Storage |
6 months @
68*F (20*C) |
|
|
| DISCHARGE SPECIFICATIONS |
|
|
| Constant power rating in Watts per battery@77*F (25*C) in
minutes |
|
|
| Final
VPC |
5 |
10 |
15 |
20 |
30 |
40 |
45 |
50 |
60 |
90 |
|
|
|
|
| |
1.60 |
2145 |
1573 |
1243 |
1034 |
806 |
652 |
605 |
558 |
498 |
363 |
|
|
|
|
|
|
|
| |
1.67 |
2035 |
1496 |
1218 |
1014 |
791 |
644 |
597 |
552 |
487 |
358 |
|
|
|
|
|
|
|
| |
1.70 |
1980 |
1474 |
1194 |
1007 |
772 |
638 |
592 |
543 |
484 |
353 |
|
|
|
|
|
|
|
| |
1.75 |
1879 |
1408 |
1155 |
979 |
748 |
627 |
583 |
539 |
477 |
351 |
|
|
|
|
|
|
|
| Constant current rating, Amps @77*F (25*C) in hours |
|
|
| |
|
1 |
2 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
24 |
|
|
|
|
|
|
|
| |
1.75 |
41.80 |
23.70 |
17.10 |
13.40 |
11.20 |
9.57 |
7.48 |
6.22 |
5.28 |
2.97 |
|
|
|
|
|
|
|
| |
1.80 |
38.20 |
22.40 |
16.20 |
12.70 |
10.60 |
9.02 |
7.04 |
5.83 |
4.95 |
2.75 |
|
|
|
|
|
|
|
| |
1.85 |
35.20 |
21.20 |
15.20 |
12.00 |
9.90 |
8.58 |
6.71 |
5.61 |
4.84 |
2.53 |
|
|
|
|
|
|
|
| |
1.90 |
31.90 |
19.80 |
14.30 |
11.40 |
9.46 |
8.14 |
6.49 |
5.28 |
4.62 |
2.48 |
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
