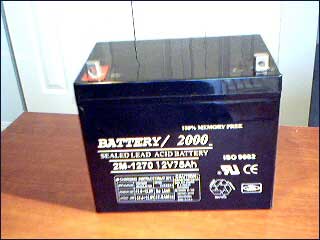

| BATTERY / 2000 TM |
ISO-9002/UL/CE/TUV certified |
|
| 2M-1270 |
Standard Range |
12V-75AH |
|
| |
| |
|
SPECIFICATIONS |
|
| |
|
|
|
|
|
|
Nominal Voltage |
12 |
|
| |
|
|
Terminal Type |
Post with nut
& bolt |
|
| |
|
|
Max. Charging Current |
25.0 Amps |
|
| |
|
|
Internal Resistance |
6 Mili. Ohms |
|
| |
|
|
Weight |
26.5 kg (58.4
lbs.) |
|
| |
|
|
Dimensions |
Length |
259
mm (10.20") |
|
|
| |
|
|
Width |
168 mm (6.61") |
|
|
| |
|
|
Height |
208 mm (8.19") |
|
|
| |
|
|
Total Height |
226 mm (8.90") |
|
|
| |
|
|
Plates |
Separator |
|
| |
|
|
Lead Calcium
alloy |
Glass Fiber |
|
| |
|
|
Self Discharge @ 77*F (25*C) |
|
| |
|
|
Capacity after 3 months
storage |
91% |
|
| |
|
|
Capacity after 6 months
storage |
82% |
|
| |
|
|
Capacity after 12 months
storage |
64% |
|
| |
|
|
Capacity affected by temperature (20 hr. rate) |
|
| |
|
|
|
|
104*F (40*C) |
|
102% |
|
| |
Product Features |
|
|
|
|
|
77*F (25*C) |
|
100% |
|
| |
|
|
|
|
32*F (0*C) |
|
85% |
|
| |
Maintenance
Free. |
|
|
|
58*F (15*C) |
|
65% |
|
| |
Sealed
Construction makes it spill proof. |
Capacity @ 77*F (25*C) |
|
| |
Vent
system automatically opens and reseals. |
73.5 Ah @ 20hour rate to 1.75V per cell |
|
| |
Excels at standby or
cycle application. |
|
70.0 Ah @ 10 hour rate to 1.75V per cell |
|
| |
Built
with heavy duty grids and virgin lead. |
59.5 Ah
@ 5 hour rate to 1.75V per cell |
|
| |
Rugged ABS housing for
easy handling. |
|
42.0 Ah
@ 1 hour rate to 1.75V per cell |
|
| |
Battery will operate in
any position. |
|
Operating Temperature Range |
|
| |
Battery is 100% memory free |
|
|
Discharge |
(-4*F) (-20*C)
to (+140*F) (60*C) |
|
| |
|
Charge |
(14*F) (-10*C)
to (+122*F) (50*C) |
|
| |
We recommend a constant voltage charge |
Recommended |
(65*F) (20*C)
to (77*F) (25*C) |
|
| |
Do not charge in upside down position. |
Charging (constant voltage) |
|
| |
|
|
Cycle use |
14.4
- 15.0 volts @ (77*F) (25*C) |
|
| |
|
|
Float use |
13.5
- 13.8 volts @ (77*F) (25*C) |
|
| |
|
|
Storage |
6 months @
68*F (20*C) |
|
| Discharge rate at 20* C in Amperes |
|
| |
TIME |
1 |
2 |
3 |
5 |
7 |
10 |
15 |
20 |
30 |
1 |
2 |
3 |
5 |
8 |
10 |
|
| |
|
Min. |
Min. |
Min. |
Min. |
Min. |
Min. |
Min. |
Min. |
Min. |
Hrs. |
Hrs. |
Hrs. |
Hrs. |
Hrs. |
Hrs. |
|
|
9.60V |
315.0 |
289.0 |
265.0 |
235.0 |
192.0 |
160.0 |
131.0 |
92.0 |
84.0 |
48.3 |
27.4 |
20.60 |
13.40 |
9.45 |
7.98 |
|
|
9.90V |
310.0 |
278.0 |
263.0 |
229.0 |
189.0 |
156.0 |
119.0 |
91.0 |
82.6 |
46.2 |
26.6 |
20.30 |
13.30 |
9.45 |
7.98 |
|
| 10.20V |
259.0 |
246.0 |
231.0 |
194.0 |
172.0 |
142.0 |
109.0 |
83.0 |
75.6 |
46.2 |
26.6 |
19.90 |
13.00 |
8.89 |
7.42 |
|
| 10.50V |
210.0 |
205.0 |
194.0 |
179.0 |
158.0 |
129.0 |
103.0 |
80.0 |
73.5 |
44.8 |
25.2 |
18.20 |
12.50 |
8.75 |
7.14 |
|
| 10.80V |
189.0 |
181.0 |
170.0 |
158.0 |
144.0 |
120.0 |
98.0 |
78.0 |
68.6 |
43.4 |
24.1 |
18.20 |
12.20 |
8.05 |
7.00 |
|
| 11.00V |
168.0 |
154.0 |
148.0 |
142.0 |
124.0 |
113.0 |
91.0 |
76.0 |
65.1 |
41.3 |
23.8 |
17.10 |
11.50 |
7.70 |
6.58 |
|
| 11.10V |
153.0 |
145.0 |
137.0 |
130.0 |
118.0 |
107.0 |
88.0 |
75.0 |
64.4 |
41.3 |
23.1 |
17.10 |
11.20 |
7.70 |
6.58 |
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
