| BATTERY / 2000 TM |
ISO-9002/UL/CE/TUV certified |
|

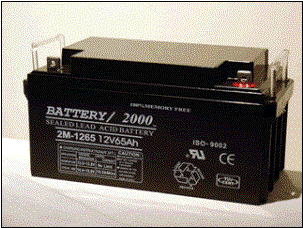

| 2M-1265 |
Standard Range |
12V-65AH |
|
| |
| |
|
SPECIFICATIONS |
|
|
|
|
|
| |
|
|
Nominal Voltage |
12 |
|
| |
|
|
Terminal Type |
Nut and bolt |
|
| |
|
|
Max. Charging Current |
19.5 Amps |
|
| |
|
|
Internal Resistance |
5 Mili. Ohms |
|
| |
|
|
Weight |
23.8 kg (52.5
lbs.) |
|
| |
|
|
Dimensions |
Length |
350
mm (13.80") |
|
| |
|
|
Width |
166 mm (6.54") |
|
|
| |
|
|
Height |
174 mm (6.85") |
|
|
| |
|
|
Total Height |
174
mm (6.857") |
|
| |
|
|
Plates |
Separator |
|
| |
|
|
Lead Calcium alloy |
Glass Fiber |
|
| |
|
|
Self Discharge @ 77*F (25*C) |
|
| |
|
|
Capacity after 3 months
storage |
91% |
|
| |
|
|
Capacity after 6 months
storage |
82% |
|
| |
|
|
Capacity after 12 months
storage |
64% |
|
| |
|
|
Capacity affected by temperature (20 hr. rate) |
|
| |
|
|
|
|
104*F (40*C) |
|
102% |
|
| |
Product Features |
|
|
|
|
|
77*F (25*C) |
|
100% |
|
| |
|
|
|
|
32*F (0*C) |
|
85% |
|
| |
Maintenance
Free. |
|
|
|
58*F (15*C) |
|
65% |
|
| |
Sealed Construction makes
it spill proof. |
|
Capacity @ 77*F (25*C) |
|
| |
Vent
system automatically opens and reseals. |
65.00 Ah @ 20hour rate to 1.75V per cell |
|
| |
Excels at standby or
cycle application. |
|
61.00 Ah @ 10 hour rate to 1.75V per cell |
|
| |
Built with heavy duty
grids and virgin lead. |
|
52.00 Ah
@ 5 hour rate to 1.75V per
cell |
|
| |
Rugged ABS housing for
easy handling. |
|
39.00 Ah
@ 1 hour rate to 1.75V per
cell |
|
| |
Battery will operate in
any position. |
|
|
Operating Temperature Range |
|
| |
Battery is 100% memory free |
|
|
Discharge |
(-4*F) (-20*C)
to (+140*F) (60*C) |
|
| |
|
Charge |
(14*F) (-10*C)
to (+122*F) (50*C) |
|
| |
We recommend a constant voltage charge |
Recommended |
(65*F) (20*C)
to (77*F) (25*C) |
|
| |
Do not charge in upside down position. |
Charging (constant voltage) |
|
| |
|
|
Cycle use |
14.4
- 15.0 volts @ (77*F) (25*C) |
|
| |
|
|
Float use |
13.5
- 13.8 volts @ (77*F) (25*C) |
|
| |
|
|
Storage |
6 months @
68*F (20*C) |
|
| Discharge rate at 20* C in Amperes |
|
| |
TIME |
1 |
2 |
3 |
5 |
7 |
10 |
15 |
20 |
30 |
1 |
2 |
3 |
5 |
8 |
10 |
|
| |
|
Min. |
Min. |
Min. |
Min. |
Min. |
Min. |
Min. |
Min. |
Min. |
Hrs. |
Hrs. |
Hrs. |
Hrs. |
Hrs. |
Hrs. |
|
|
9.60V |
293.0 |
268.0 |
246.0 |
218.0 |
179.0 |
151.0 |
148.0 |
86.0 |
78.0 |
44.8 |
25.4 |
19.10 |
12.40 |
8.77 |
7.41 |
|
|
9.90V |
288.0 |
258.0 |
244.0 |
212.0 |
175.0 |
145.0 |
110.0 |
85.0 |
76.7 |
42.9 |
24.7 |
18.80 |
12.30 |
8.77 |
7.41 |
|
|
10.20V |
251.0 |
228.0 |
214.0 |
181.0 |
160.0 |
131.0 |
102.0 |
77.0 |
70.2 |
42.9 |
24.7 |
18.50 |
12.00 |
8.25 |
6.89 |
|
|
10.50V |
209.0 |
190.0 |
181.0 |
166.0 |
146.0 |
120.0 |
96.0 |
74.0 |
68.2 |
41.6 |
23.4 |
17.20 |
11.60 |
8.12 |
6.63 |
|
|
10.80V |
175.0 |
168.0 |
158.0 |
146.0 |
133.0 |
111.0 |
90.0 |
72.0 |
63.7 |
40.3 |
22.4 |
16.90 |
11.30 |
7.47 |
6.50 |
|
|
11.00V |
155.0 |
144.0 |
138.0 |
131.0 |
116.0 |
105.0 |
85.0 |
70.0 |
60.4 |
38.3 |
22.1 |
15.90 |
10.70 |
7.15 |
6.11 |
|
|
11.10V |
142.0 |
134.0 |
127.0 |
121.0 |
109.0 |
100.0 |
82.0 |
70.0 |
59.8 |
38.3 |
21.4 |
15.90 |
10.40 |
7.15 |
6.11 |
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
