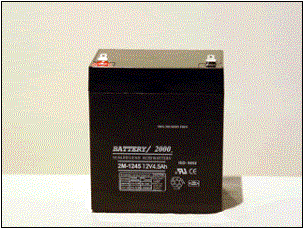

| BATTERY / 2000 TM |
ISO-9002/UL/CE/TUV certified |
|
| 2M-1240 |
Standard Range |
12V-4.5AH |
|
| |
| |
|
SPECIFICATIONS |
|
|
|
|
|
| |
|
|
Nominal Voltage |
12 |
|
| |
|
|
Terminal Type |
187 faston |
|
| |
|
|
Max. Charging Current |
1.26 Amps |
|
| |
|
|
Internal Resistance |
40 Mili. Ohms |
|
| |
|
|
Weight |
1.75 kg (3.81
lbs.) |
|
| |
|
|
Dimensions |
Length |
90mm (3.54") |
|
|
| |
|
|
Width |
70mm (2.76") |
|
|
| |
|
|
Height |
101mm (3.98") |
|
|
| |
|
|
Total Height |
107mm (4.21") |
|
|
| |
|
|
Plates |
Separator |
|
| |
|
|
Lead Calcium alloy |
Glass Fiber |
|
| |
|
|
Self Discharge @ 77*F (25*C) |
|
| |
|
|
Capacity after 3 months
storage |
91% |
|
| |
|
|
Capacity after 6 months
storage |
82% |
|
| |
|
|
Capacity after 12 months
storage |
64% |
|
| |
|
|
Capacity affected by temperature (20 hr. rate) |
|
| |
|
|
|
|
104*F (40*C) |
|
102% |
|
| |
Product Features |
|
|
|
|
|
77*F (25*C) |
|
100% |
|
| |
|
|
|
|
32*F (0*C) |
|
85% |
|
| |
Maintenance
Free. |
|
|
|
58*F (15*C) |
|
65% |
|
| |
Sealed Construction makes
it spill proof. |
|
Capacity @ 77*F (25*C) |
|
| |
Vent system automatically
opens and reseals. |
4.50 Ah @ 20hour rate to
1.75V per cell |
|
| |
Excels at standby or
cycle application. |
|
4.280 Ah @ 10 hour rate to 1.75V per cell |
|
| |
Built with heavy duty
grids and virgin lead. |
|
3.8Ah @ 5 hour rate to
1.75V per cell |
|
| |
Rugged ABS housing for
easy handling. |
|
2.70 Ah @
1 hour rate to 1.75V per cell |
|
| |
Battery will operate in
any position. |
|
|
Operating Temperature Range |
|
| |
Battery is 100% memory free |
|
|
Discharge |
(-4*F) (-20*C)
to (+140*F) (60*C) |
|
| |
|
Charge |
(14*F) (-10*C)
to (+122*F) (50*C) |
|
| |
We recommend a constant voltage charge |
Recommended |
(65*F) (20*C)
to (77*F) (25*C) |
|
| |
Do not charge in upside down position. |
Charging (constant voltage) |
|
| |
|
|
Cycle use |
14.4
- 15.0 volts @ (77*F) (25*C) |
|
| |
|
|
Float use |
13.5
- 13.8 volts @ (77*F) (25*C) |
|
| |
|
|
Storage |
6 months @
68*F (20*C) |
|
| Discharge rate at 20* C in Amperes |
|
| |
TIME |
1 |
2 |
3 |
5 |
7 |
10 |
15 |
20 |
30 |
1 |
2 |
3 |
5 |
8 |
10 |
|
| |
|
Min. |
Min. |
Min. |
Min. |
Min. |
Min. |
Min. |
Min. |
Min. |
Hrs. |
Hrs. |
Hrs. |
Hrs. |
Hrs. |
Hrs. |
|
|
9.60V |
24.40 |
19.80 |
16.10 |
15.40 |
13.50 |
10.90 |
7.65 |
6.76 |
4.31 |
2.55 |
1.62 |
1.18 |
0.77 |
0.53 |
0.41 |
|
|
9.90V |
23.10 |
19.30 |
15.40 |
14.80 |
12.90 |
10.20 |
7.43 |
5.89 |
4.19 |
2.49 |
1.59 |
1.16 |
0.75 |
0.50 |
0.41 |
|
|
10.20V |
18.00 |
16.60 |
15.20 |
12.90 |
10.90 |
9.00 |
7.20 |
5.57 |
4.13 |
2.45 |
1.55 |
1.10 |
0.74 |
0.49 |
0.41 |
|
|
10.50V |
14.10 |
13.50 |
12.90 |
12.10 |
9.86 |
8.33 |
6.87 |
5.37 |
4.06 |
2.42 |
1.51 |
1.09 |
0.73 |
0.48 |
0.41 |
|
|
10.80V |
12.90 |
12.10 |
11.50 |
10.90 |
9.00 |
7.65 |
6.42 |
5.14 |
3.98 |
2.41 |
1.48 |
1.07 |
0.72 |
0.47 |
0.38 |
|
|
11.00V |
11.00 |
10.20 |
9.57 |
9.00 |
8.10 |
7.32 |
5.74 |
5.08 |
3.84 |
2.39 |
1.45 |
1.04 |
0.70 |
0.46 |
0.35 |
|
|
11.10V |
10.00 |
9.68 |
9.00 |
8.33 |
7.65 |
7.09 |
5.63 |
4.82 |
3.75 |
2.38 |
1.43 |
0.96 |
0.69 |
0.45 |
0.34 |
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
