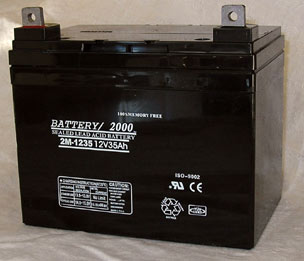

| BATTERY / 2000 TM |
ISO-9002/UL/CE/TUV certified |
|
| 2M-1235 |
Standard Range |
12V-35AH |
|
| |
| |
|
SPECIFICATIONS |
|
|
|
|
|
| |
|
|
Nominal Voltage |
12 |
|
| |
|
|
Terminal Type |
Nut and bolt |
|
| |
|
|
Max. Charging Current |
10.50 Amps |
|
| |
|
|
Internal Resistance |
9 Mili. Ohms |
|
| |
|
|
Weight |
10.41 kg
(22.93 lbs.) |
|
| |
|
|
Dimensions |
Length |
198 mm (7.80") |
|
|
| |
|
|
Width |
133 mm (5.24") |
|
|
| |
|
|
Height |
155 mm (6.50") |
|
|
| |
|
|
Total Height |
175 mm (6.89") |
|
|
| |
|
|
Plates |
Separator |
|
| |
|
|
Lead Calcium
alloy |
Glass Fiber |
|
| |
|
|
Self Discharge @ 77*F (25*C) |
|
| |
|
|
Capacity after 3 months
storage |
91% |
|
| |
|
|
Capacity after 6 months
storage |
82% |
|
| |
|
|
Capacity after 12 months
storage |
64% |
|
| |
|
|
Capacity affected by temperature (20 hr. rate) |
|
| |
|
|
|
|
104*F (40*C) |
|
102% |
|
| |
Product Features |
|
|
|
|
|
77*F (25*C) |
|
100% |
|
| |
|
|
|
|
32*F (0*C) |
|
85% |
|
| |
Maintenance
Free. |
|
|
|
58*F (15*C) |
|
65% |
|
| |
Sealed
Construction makes it spill proof. |
Capacity @ 77*F (25*C) |
|
| |
Vent
system automatically opens and reseals. |
35.00 Ah @ 20hour rate to 1.75V per cell |
|
| |
Excels at standby or
cycle application. |
|
34.00 Ah @ 10 hour rate to 1.75V per cell |
|
| |
Built
with heavy duty grids and virgin lead. |
29.00 Ah
@ 5 hour rate to 1.75V per cell |
|
| |
Rugged ABS housing for
easy handling. |
|
20.40 Ah
@ 1 hour rate to 1.75V per cell |
|
| |
Battery will operate in
any position. |
|
Operating Temperature Range |
|
| |
Battery is 100% memory free |
|
|
Discharge |
(-4*F) (-20*C)
to (+140*F) (60*C) |
|
| |
|
Charge |
(14*F) (-10*C)
to (+122*F) (50*C) |
|
| |
We recommend a constant voltage charge |
Recommended |
(65*F) (20*C)
to (77*F) (25*C) |
|
| |
Do not charge in upside down position. |
Charging (constant voltage) |
|
| |
|
|
Cycle use |
14.4
- 15.0 volts @ (77*F) (25*C) |
|
| |
|
|
Float use |
13.5
- 13.8 volts @ (77*F) (25*C) |
|
| |
|
|
Storage |
6 months @
68*F (20*C) |
|
| Discharge rate at 20* C in Amperes |
|
| |
TIME |
1 |
2 |
3 |
5 |
7 |
10 |
15 |
20 |
30 |
1 |
2 |
3 |
5 |
8 |
10 |
|
| |
|
Min. |
Min. |
Min. |
Min. |
Min. |
Min. |
Min. |
Min. |
Min. |
Hrs. |
Hrs. |
Hrs. |
Hrs. |
Hrs. |
Hrs. |
|
|
9.60V |
180.0 |
147.0 |
121.0 |
110.0 |
97.7 |
81.9 |
58.8 |
50.0 |
37.2 |
21.4 |
12.1 |
9.14 |
5.95 |
4.18 |
3.53 |
|
|
9.90V |
175.0 |
140.0 |
114.0 |
104.0 |
91.4 |
77.7 |
55.7 |
47.0 |
36.5 |
20.4 |
11.7 |
8.99 |
5.89 |
4.18 |
3.53 |
|
| 10.20V |
130.0 |
121.0 |
110.0 |
94.5 |
81.9 |
67.2 |
52.5 |
42.0 |
33.4 |
20.4 |
11.7 |
8.83 |
5.76 |
3.93 |
3.28 |
|
| 10.50V |
101.0 |
97.7 |
91.4 |
85.1 |
74.6 |
62.0 |
49.4 |
40.0 |
32.5 |
19.8 |
11.1 |
8.21 |
5.54 |
3.87 |
3.16 |
|
| 10.80V |
88.2 |
85.1 |
81.9 |
74.6 |
68.3 |
56.7 |
46.2 |
38.0 |
30.3 |
19.2 |
10.6 |
8.06 |
5.42 |
3.56 |
3.10 |
|
| 11.00V |
77.7 |
71.4 |
68.3 |
65.1 |
58.8 |
52.5 |
44.1 |
36.0 |
28.8 |
18.3 |
10.5 |
7.59 |
5.11 |
3.41 |
2.91 |
|
| 11.10V |
71.4 |
68.3 |
65.1 |
62.0 |
55.7 |
49.4 |
42.0 |
35.0 |
28.5 |
18.3 |
10.2 |
7.59 |
4.96 |
3.41 |
2.91 |
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
