| BATTERY / 2000 TM |
ISO-9002/UL/CE/TUV certified |
|

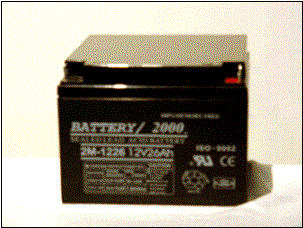

| 2M-1226 |
Standard Range |
12V-26AH |
|
| |
| |
|
SPECIFICATIONS |
|
|
|
|
|
| |
|
|
Nominal Voltage |
12 |
|
| |
|
|
Terminal Type |
Nut and bolt |
|
| |
|
|
Max. Charging Current |
7.80 Amps |
|
| |
|
|
Internal Resistance |
10 Mili. Ohms |
|
| |
|
|
Weight |
8.80 kg (19.40
lbs.) |
|
| |
|
|
Dimensions |
Length |
166 mm (6.54") |
|
|
| |
|
|
Width |
175 mm (6.89") |
|
|
| |
|
|
Height |
125 mm (4.92") |
|
|
| |
|
|
Total Height |
125 mm (4.92") |
|
|
| |
|
|
Plates |
Separator |
|
| |
|
|
Lead Calcium alloy |
Glass Fiber |
|
| |
|
|
Self Discharge @ 77*F (25*C) |
|
| |
|
|
Capacity after 3 months
storage |
91% |
|
| |
|
|
Capacity after 6 months
storage |
82% |
|
| |
|
|
Capacity after 12 months
storage |
64% |
|
| |
|
|
Capacity affected by temperature (20 hr. rate) |
|
| |
|
|
|
|
104*F (40*C) |
|
102% |
|
| |
Product Features |
|
|
|
|
|
77*F (25*C) |
|
100% |
|
| |
|
|
|
|
32*F (0*C) |
|
85% |
|
| |
Maintenance
Free. |
|
|
|
58*F (15*C) |
|
65% |
|
| |
Sealed Construction makes
it spill proof. |
|
Capacity @ 77*F (25*C) |
|
| |
Vent system automatically
opens and reseals. |
26.00 Ah @ 20hour rate
to 1.75V per cell |
|
| |
Excels at standby or
cycle application. |
|
25.00 Ah @ 10 hour rate to 1.75V per cell |
|
| |
Built with heavy duty
grids and virgin lead. |
|
21.50 Ah @ 5 hour rate to 1.75V per cell |
|
| |
Rugged ABS housing for
easy handling. |
|
18.90 Ah @ 1 hour
rate to 1.75V per cell |
|
| |
Battery will operate in
any position. |
|
|
Operating Temperature Range |
|
| |
Battery is 100% memory free |
|
|
Discharge |
(-4*F) (-20*C)
to (+140*F) (60*C) |
|
| |
|
Charge |
(14*F) (-10*C)
to (+122*F) (50*C) |
|
| |
We recommend a constant voltage charge |
Recommended |
(65*F) (20*C)
to (77*F) (25*C) |
|
| |
Do not charge in upside down position. |
Charging (constant voltage) |
|
| |
|
|
Cycle use |
14.4
- 15.0 volts @ (77*F) (25*C) |
|
| |
|
|
Float use |
13.5
- 13.8 volts @ (77*F) (25*C) |
|
| |
|
|
Storage |
6 months @
68*F (20*C) |
|
| Discharge rate at 20* C in Amperes |
|
| |
TIME |
1 |
2 |
3 |
5 |
7 |
10 |
15 |
20 |
30 |
1 |
2 |
3 |
5 |
8 |
10 |
|
| |
|
Min. |
Min. |
Min. |
Min. |
Min. |
Min. |
Min. |
Min. |
Min. |
Hrs. |
Hrs. |
Hrs. |
Hrs. |
Hrs. |
Hrs. |
|
|
9.60V |
126.0 |
105.0 |
92.40 |
79.80 |
72.50 |
58.80 |
43.10 |
33.60 |
24.00 |
14.30 |
9.40 |
6.70 |
4.40 |
3.00 |
2.40 |
|
|
9.90V |
121.0 |
99.80 |
89.30 |
76.70 |
67.20 |
55.70 |
42.00 |
32.50 |
23.80 |
14.10 |
9.20 |
6.60 |
4.30 |
2.90 |
2.40 |
|
|
10.20V |
95.60 |
90.30 |
85.10 |
73.50 |
63.00 |
50.40 |
38.90 |
31.40 |
23.40 |
14.00 |
8.70 |
6.30 |
4.20 |
2.90 |
2.30 |
|
|
10.50V |
75.60 |
73.50 |
71.40 |
66.20 |
56.70 |
47.30 |
37.80 |
30.10 |
23.00 |
13.80 |
8.50 |
6.20 |
4.10 |
2.80 |
2.30 |
|
|
10.80V |
67.20 |
65.10 |
64.10 |
58.80 |
51.50 |
43.10 |
35.70 |
28.70 |
22.60 |
13.60 |
8.40 |
6.10 |
4.00 |
2.70 |
2.20 |
|
|
11.00V |
60.90 |
57.80 |
54.60 |
52.50 |
45.20 |
39.90 |
33.60 |
28.00 |
22.00 |
13.40 |
8.30 |
6.00 |
3.90 |
2.60 |
2.20 |
|
|
11.10V |
56.70 |
52.50 |
50.40 |
48.00 |
43.10 |
38.90 |
32.60 |
27.00 |
21.70 |
13.20 |
8.20 |
5.90 |
3.80 |
2.50 |
2.10 |
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
