| BATTERY / 2000 TM |
ISO-9002/UL/CE/TUV certified |
|

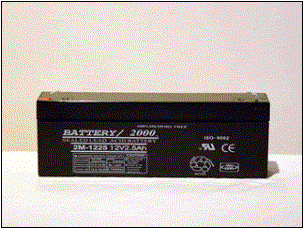

| 2M-1225 |
Standard Range |
12V-2.5AH |
|
| |
| |
|
SPECIFICATIONS |
|
| |
|
|
|
|
|
|
Nominal Voltage |
12 |
|
| |
|
|
Terminal Type |
187 faston |
|
| |
|
|
Max. Charging Current |
.66 Amps |
|
| |
|
|
Internal Resistance |
50 Mili. Ohms |
|
| |
|
|
Weight |
0.96 kg (2.12
lbs.) |
|
| |
|
|
Dimensions |
Length |
178mm (7.01") |
|
|
| |
|
|
Width |
35mm (1.38") |
|
|
| |
|
|
Height |
60mm (2.36") |
|
|
| |
|
|
Total Height |
67mm (2.64") |
|
|
| |
|
|
Plates |
Separator |
|
| |
|
|
Lead Calcium alloy |
Glass Fiber |
|
| |
|
|
Self Discharge @ 77*F (25*C) |
|
| |
|
|
Capacity after 3 months
storage |
91% |
|
| |
|
|
Capacity after 6 months
storage |
82% |
|
| |
|
|
Capacity after 12 months
storage |
64% |
|
| |
|
|
Capacity affected by temperature (20 hr. rate) |
|
| |
|
|
|
|
|
104*F (40*C) |
|
102% |
|
| |
Product Features |
|
|
|
|
|
77*F (25*C) |
|
100% |
|
| |
|
|
|
|
32*F (0*C) |
|
85% |
|
| |
Maintenance
Free. |
|
|
|
58*F (15*C) |
|
65% |
|
| |
Sealed Construction makes
it spill proof. |
|
Capacity @ 77*F (25*C) |
|
| |
Vent
system automatically opens and reseals. |
2.2 Ah @ 20hour rate to 1.75V per cell |
|
| |
Excels at standby or
cycle application. |
|
2.1 Ah @ 10 hour rate to 1.75V per cell |
|
| |
Built with heavy duty
grids and virgin lead. |
|
1.87Ah @
5 hour rate to 1.75V per cell |
|
| |
Rugged ABS housing for
easy handling. |
|
1.2 Ah @
1 hour rate to 1.75V per cell |
|
| |
Battery will operate in
any position. |
|
|
Operating Temperature Range |
|
| |
Battery is 100% memory free |
|
|
Discharge |
(-4*F) (-20*C)
to (+140*F) (60*C) |
|
| |
|
Charge |
(14*F) (-10*C)
to (+122*F) (50*C) |
|
| |
We recommend a constant voltage charge |
Recommended |
(65*F) (20*C)
to (77*F) (25*C) |
|
| |
Do not charge in upside down position. |
Charging (constant voltage) |
|
| |
|
|
Cycle use |
14.4
- 15.0 volts @ (77*F) (25*C) |
|
| |
|
|
Float use |
13.5
- 13.8 volts @ (77*F) (25*C) |
|
| |
|
|
Storage |
6 months @
68*F (20*C) |
|
| |
|
|
| Discharge rate at 20* C in Amperes |
|
| |
TIME |
1 |
2 |
3 |
5 |
7 |
10 |
15 |
20 |
30 |
1 |
2 |
3 |
5 |
8 |
10 |
|
| |
|
Min. |
Min. |
Min. |
Min. |
Min. |
Min. |
Min. |
Min. |
Min. |
Hrs. |
Hrs. |
Hrs. |
Hrs. |
Hrs. |
Hrs. |
|
|
9.60V |
11.60 |
9.45 |
7.77 |
7.14 |
6.30 |
5.25 |
3.78 |
3.24 |
2.03 |
1.24 |
0.76 |
0.56 |
0.36 |
0.24 |
0.20 |
|
|
9.90V |
11.30 |
9.03 |
7.35 |
6.72 |
5.88 |
5.04 |
3.57 |
3.01 |
1.98 |
1.21 |
0.74 |
0.54 |
0.35 |
0.24 |
0.20 |
|
|
10.20V |
8.40 |
7.77 |
7.14 |
6.09 |
5.25 |
4.31 |
3.36 |
2.68 |
1.96 |
1.18 |
0.72 |
0.52 |
0.35 |
0.23 |
0.19 |
|
|
10.50V |
6.51 |
8.30 |
5.88 |
5.46 |
4.83 |
3.98 |
3.21 |
2.56 |
1.94 |
1.18 |
0.70 |
0.52 |
0.34 |
0.23 |
0.19 |
|
|
10.80V |
5.67 |
5.40 |
5.25 |
4.83 |
4.41 |
3.68 |
3.00 |
2.44 |
1.90 |
1.16 |
0.68 |
0.50 |
0.33 |
0.23 |
0.18 |
|
|
11.00V |
5.04 |
4.62 |
4.41 |
4.20 |
3.78 |
3.36 |
2.84 |
2.32 |
1.86 |
1.14 |
0.68 |
0.50 |
0.32 |
0.22 |
0.18 |
|
|
11.10V |
4.62 |
4.41 |
4.20 |
3.99 |
3.57 |
3.15 |
2.73 |
2.28 |
1.84 |
1.14 |
0.66 |
0.48 |
0.32 |
0.20 |
0.18 |
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
