| BATTERY / 2000 TM |
ISO-9002/UL/CE/TUV certified |
|

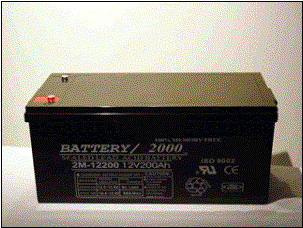

| 2M-12200 |
Standard Range |
12V-200AH |
|
| |
| |
|
SPECIFICATIONS |
|
|
|
|
|
| |
|
|
Nominal Voltage |
12 |
|
| |
|
|
Terminal Types |
Nut and bolt |
|
| |
|
|
Max. Charging Current |
60.0 Amps |
|
| |
|
|
Internal Resistance |
4 Mili. Ohms |
|
| |
|
|
Weight |
61.5 kg (136
lbs.) |
|
| |
|
|
Dimensions |
Length |
525 mm (20.6") |
|
|
| |
|
|
Width |
243 mm (9.57") |
|
|
| |
|
|
Height |
220 mm (8.66") |
|
|
| |
|
|
Total Height |
245 mm (9.65") |
|
|
| |
|
|
Plates |
Separator |
|
| |
|
|
Lead Calcium alloy |
Glass Fiber |
|
| |
|
|
Self Discharge @ 77*F (25*C) |
|
| |
|
|
Capacity after 3 months
storage |
91% |
|
| |
|
|
Capacity after 6 months
storage |
82% |
|
| |
|
|
Capacity after 12 months
storage |
64% |
|
| |
|
|
Capacity affected by temperature (20 hr. rate) |
|
| |
|
|
|
|
104*F (40*C) |
|
102% |
|
| |
Product Features |
|
|
|
|
|
77*F (25*C) |
|
100% |
|
| |
|
|
|
|
32*F (0*C) |
|
85% |
|
| |
Maintenance
Free. |
|
|
|
58*F (15*C) |
|
65% |
|
| |
Sealed Construction makes
it spill proof. |
|
Capacity @ 77*F (25*C) |
|
| |
Vent
system automatically opens and reseals. |
210 Ah
@ 20hour rate to 1.75V per cell |
|
| |
Excels at standby or
cycle application. |
|
200 Ah
@ 10 hour rate to 1.75V per cell |
|
| |
Built with heavy duty
grids and virgin lead. |
|
170
Ah @
5 hour rate to 1.75V per cell |
|
| |
Rugged ABS housing for
easy handling. |
|
120
Ah @ 1 hour rate to 1.75V per cell |
|
| |
Battery will operate in
any position. |
|
|
Operating Temperature Range |
|
| |
Battery is 100% memory free |
|
|
Discharge |
(-4*F) (-20*C)
to (+140*F) (60*C) |
|
| |
|
Charge |
(14*F) (-10*C)
to (+122*F) (50*C) |
|
| |
We recommend a constant voltage charge |
Recommended |
(65*F) (20*C)
to (77*F) (25*C) |
|
| |
Do not charge in upside down position. |
Charging (constant voltage) |
|
| |
|
|
Cycle use |
14.4
- 15.0 volts @ (77*F) (25*C) |
|
| |
|
|
Float use |
13.5
- 13.8 volts @ (77*F) (25*C) |
|
| |
|
|
Storage |
6 months @
68*F (20*C) |
|
| Discharge rate at 20* C in Amperes |
|
| |
TIME |
1 |
2 |
3 |
5 |
7 |
10 |
15 |
20 |
30 |
1 |
2 |
3 |
5 |
8 |
10 |
|
| |
|
. |
Min. |
Min. |
Min. |
Min. |
Min. |
Min. |
Min. |
Min. |
Hrs. |
Hrs. |
Hrs. |
Hrs. |
Hrs. |
Hrs. |
|
|
9.60V |
1155 |
945.0 |
777.0 |
714.0 |
630.0 |
525.0 |
378.0 |
320.0 |
240.0 |
138.0 |
78.4 |
59.00 |
38.40 |
27.00 |
22.80 |
|
|
9.90V |
1134 |
903.0 |
735.0 |
672.0 |
588.0 |
504.0 |
357.0 |
300.0 |
236.0 |
132.0 |
76.0 |
58.00 |
38.00 |
27.00 |
22.80 |
|
|
10.20V |
840.0 |
777.0 |
714.0 |
609.0 |
525.0 |
431.0 |
336.0 |
268.0 |
216.0 |
132.0 |
76.0 |
57.00 |
37.20 |
25.40 |
21.20 |
|
|
10.50V |
651.0 |
630.0 |
588.0 |
546.0 |
483.0 |
399.0 |
321.0 |
256.0 |
210.0 |
128.0 |
72.0 |
53.00 |
35.80 |
25.00 |
20.40 |
|
|
10.80V |
567.0 |
546.0 |
525.0 |
483.0 |
441.0 |
368.0 |
299.0 |
244.0 |
196.0 |
124.0 |
69.0 |
52.00 |
35.00 |
23.00 |
20.00 |
|
|
11.00V |
504.0 |
462.0 |
441.0 |
420.0 |
378.0 |
336.0 |
284.0 |
232.0 |
186.0 |
118.0 |
68.0 |
49.00 |
33.00 |
22.00 |
18.80 |
|
|
11.10V |
462.0 |
441.0 |
420.0 |
399.0 |
357.0 |
315.0 |
273.0 |
228.0 |
184.0 |
118.0 |
66.0 |
47.00 |
32.00 |
22.00 |
18.80 |
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
