| BATTERY / 2000 TM |
ISO-9002/UL/CE/TUV certified |
|

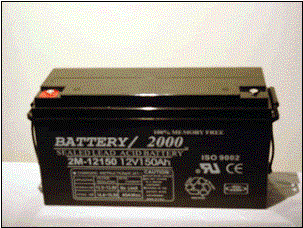

| 2M-12150 |
Standard Range |
12V-150AH |
|
| |
| |
|
SPECIFICATIONS |
|
|
|
|
|
| |
|
|
Nominal Voltage |
12 |
|
| |
|
|
Terminal Types |
Post
w/inverted screw |
|
| |
|
|
Max. Charging Current |
45.0 Amps |
|
| |
|
|
Internal Resistance |
4 Mili. Ohms |
|
| |
|
|
Weight |
45.6 kg (102
lbs.) |
|
| |
|
|
Dimensions |
Length |
483 mm (19.0") |
|
|
| |
|
|
Width |
171 mm (6.73") |
|
|
| |
|
|
Height |
221 mm (8.70") |
|
|
| |
|
|
Total Height |
241 mm (9.49") |
|
|
| |
|
|
Plates |
Separator |
|
| |
|
|
Lead Calcium alloy |
Glass Fiber |
|
| |
|
|
Self Discharge @ 77*F (25*C) |
|
| |
|
|
Capacity after 3 months
storage |
91% |
|
| |
|
|
Capacity after 6 months
storage |
82% |
|
| |
|
|
Capacity after 12 months
storage |
64% |
|
| |
|
|
Capacity affected by temperature (20 hr. rate) |
|
| |
|
|
|
|
104*F (40*C) |
|
102% |
|
| |
Product Features |
|
|
|
|
|
77*F (25*C) |
|
100% |
|
| |
|
|
|
|
32*F (0*C) |
|
85% |
|
| |
Maintenance
Free. |
|
|
|
58*F (15*C) |
|
65% |
|
| |
Sealed Construction makes
it spill proof. |
|
Capacity @ 77*F (25*C) |
|
| |
Vent
system automatically opens and reseals. |
162 Ah
@ 20hour rate to 1.75V per cell |
|
| |
Excels at standby or
cycle application. |
|
150 Ah
@ 10 hour rate to 1.75V per cell |
|
| |
Built with heavy duty
grids and virgin lead. |
|
135
Ah @
5 hour rate to 1.75V per cell |
|
| |
Rugged ABS housing for
easy handling. |
|
97 Ah @ 1 hour rate to 1.75V per cell |
|
| |
Battery will operate in
any position. |
|
|
Operating Temperature Range |
|
| |
Battery is 100% memory free |
|
|
Discharge |
(-4*F) (-20*C)
to (+140*F) (60*C) |
|
| |
|
Charge |
(14*F) (-10*C)
to (+122*F) (50*C) |
|
| |
We recommend a constant voltage charge |
Recommended |
(65*F) (20*C)
to (77*F) (25*C) |
|
| |
Do not charge in upside down position. |
Charging (constant voltage) |
|
| |
|
|
Cycle use |
14.4
- 15.0 volts @ (77*F) (25*C) |
|
| |
|
|
Float use |
13.5
- 13.8 volts @ (77*F) (25*C) |
|
| |
|
|
Storage |
6 months @
68*F (20*C) |
|
| Discharge rate at 20* C in Amperes |
|
| |
TIME |
1 |
2 |
3 |
5 |
7 |
10 |
15 |
20 |
30 |
1 |
2 |
3 |
5 |
8 |
10 |
|
| |
|
Min. |
Min. |
Min. |
Min. |
Min. |
Min. |
Min. |
Min. |
Min. |
Hrs. |
Hrs. |
Hrs. |
Hrs. |
Hrs. |
Hrs. |
|
|
9.60V |
866.0 |
709.0 |
583.0 |
536.0 |
473.0 |
394.0 |
284.0 |
240.0 |
180.0 |
103.0 |
58.8 |
44.20 |
28.80 |
20.20 |
17.10 |
|
|
9.90V |
882.0 |
677.0 |
551.0 |
504.0 |
441.0 |
378.0 |
268.0 |
225.0 |
177.0 |
99.0 |
57.0 |
43.50 |
28.50 |
20.20 |
17.10 |
|
|
10.20V |
630.0 |
583.0 |
536.0 |
457.0 |
394.0 |
322.0 |
252.0 |
201.0 |
162.0 |
99.0 |
57.0 |
42.70 |
27.90 |
19.00 |
15.90 |
|
|
10.50V |
488.0 |
473.0 |
441.0 |
410.0 |
362.0 |
299.0 |
240.0 |
192.0 |
157.0 |
96.0 |
54.0 |
39.70 |
26.80 |
18.70 |
15.30 |
|
|
10.80V |
425.0 |
410.0 |
394.0 |
362.0 |
331.0 |
275.0 |
225.0 |
183.0 |
147.0 |
93.0 |
51.7 |
39.00 |
26.20 |
17.20 |
15.00 |
|
|
11.00V |
378.0 |
347.0 |
331.0 |
315.0 |
284.0 |
252.0 |
214.0 |
174.0 |
139.0 |
88.5 |
51.0 |
36.70 |
24.70 |
16.50 |
14.10 |
|
|
11.10V |
347.0 |
331.0 |
315.0 |
299.0 |
268.0 |
236.0 |
205.0 |
171.0 |
138.0 |
88.5 |
49.5 |
36.70 |
24.00 |
16.50 |
14.10 |
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
