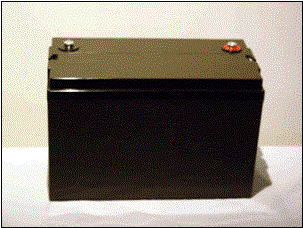

| BATTERY / 2000 TM |
ISO-9002/UL/CE/TUV certified |
|
|
| 2M-12100HR |
HIGH RATE SERIES |
12V-100AH |
|
|
| |
|
| |
|
SPECIFICATIONS |
|
|
| |
|
|
|
|
|
|
|
Nominal Voltage |
12 |
|
|
| |
|
|
Terminal Type |
Inverted screw |
|
|
| |
|
|
Max. Discharge Current |
648 Amps |
|
|
| |
|
|
Internal Resistance |
4 Mili. Ohms |
|
|
| |
|
|
Short circuit current |
|
3635 Amps |
|
|
|
| |
|
|
Weight |
29 kg (64 lbs.) |
|
|
| |
|
|
Dimensions |
Length |
305 mm (12.0") |
|
|
|
| |
|
|
Width |
168 mm (6.62") |
|
|
|
| |
|
|
Height |
208 mm (8.20") |
|
|
|
| |
|
|
Total Height |
213 mm (8.39") |
|
|
|
| |
|
|
Plates |
Separator |
|
|
| |
|
|
Lead Calcium alloy |
Micro porus |
|
|
| |
|
|
Self Discharge @ 77*F (25*C) |
|
|
| |
|
|
Capacity after 3 months
storage |
91% |
|
|
| |
|
|
Capacity after 6 months
storage |
82% |
|
|
| |
|
|
Capacity after 12 months
storage |
64% |
|
|
| |
|
|
Capacity affected by temperature (20 hr. rate) |
|
|
| Product Features |
|
|
104*F (40*C) |
|
102% |
|
|
| |
|
|
|
|
|
|
77*F (25*C) |
|
100% |
|
|
| Maintenance Free. |
|
|
|
32*F (0*C) |
|
85% |
|
|
| Sealed Construction makes it spill proof. |
|
|
|
58*F (15*C) |
|
65% |
|
|
| Vent system automatically opens and reseals. |
Capacity @ 77*F (25*C) |
|
|
| 10 year design life |
100.0Ah @ 20hour
rate |
|
|
| Operates at low internal pressure |
90.5Ah
@ 8 hour rate |
|
|
| Rugged ABS housing for easy handling. |
Discharge |
(-40*F)
(-40*C) to (+140*F) (60*C) |
|
|
| Battery will operate in any position. |
Charge |
(-4*F) (-20*C) to (+122*F) (50*C) |
|
|
| Battery is 100%
memory free |
Recommended |
(68*F) (20*C)
to (77*F) (25*C) |
|
|
| |
|
|
Charging (constant voltage) |
|
|
| |
|
|
Cycle use |
14.1-
14.5 volts @ (77*F) (25*C) |
|
|
| |
|
|
Float use |
13.5
- 13.8 volts @ (77*F) (25*C) |
|
|
| |
|
|
Storage |
6 months @
68*F (20*C) |
|
|
| DISCHARGE SPECIFICATIONS |
|
|
| Constant power rating in Watts per battery@77*F (25*C) in
minutes |
|
|
| Final VPC |
5 |
10 |
15 |
20 |
30 |
40 |
45 |
50 |
60 |
90 |
|
|
|
|
| |
1.60 |
3641 |
2701 |
2084 |
1705 |
1264 |
1014 |
934 |
854 |
743 |
542 |
|
|
|
|
|
|
|
| |
1.67 |
3518 |
2650 |
2062 |
1689 |
1254 |
1008 |
929 |
850 |
740 |
541 |
|
|
|
|
|
|
|
| |
1.70 |
3464 |
2631 |
2048 |
1679 |
1250 |
1004 |
926 |
848 |
739 |
537 |
|
|
|
|
|
|
|
| |
1.75 |
3284 |
2471 |
1973 |
1647 |
1238 |
996 |
918 |
840 |
732 |
536 |
|
|
|
|
|
|
|
| Constant current rating, Amps @77*F (25*C) in hours |
|
|
| |
|
1 |
2 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
24 |
|
|
|
|
|
|
|
| |
1.75 |
61.70 |
35.90 |
26.00 |
20.50 |
16.80 |
14.40 |
11.10 |
9.07 |
7.74 |
4.18 |
|
|
|
|
|
|
|
| |
1.80 |
60.80 |
35.50 |
25.80 |
20.10 |
16.60 |
14.10 |
11.00 |
9.02 |
7.68 |
4.13 |
|
|
|
|
|
|
|
| |
1.85 |
58.40 |
34.60 |
24.90 |
19.40 |
16.10 |
13.70 |
10.60 |
8.72 |
7.41 |
3.99 |
|
|
|
|
|
|
|
| |
1.90 |
53.70 |
32.30 |
23.40 |
18.40 |
15.10 |
12.90 |
9.83 |
8.06 |
6.78 |
3.68 |
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
